Description

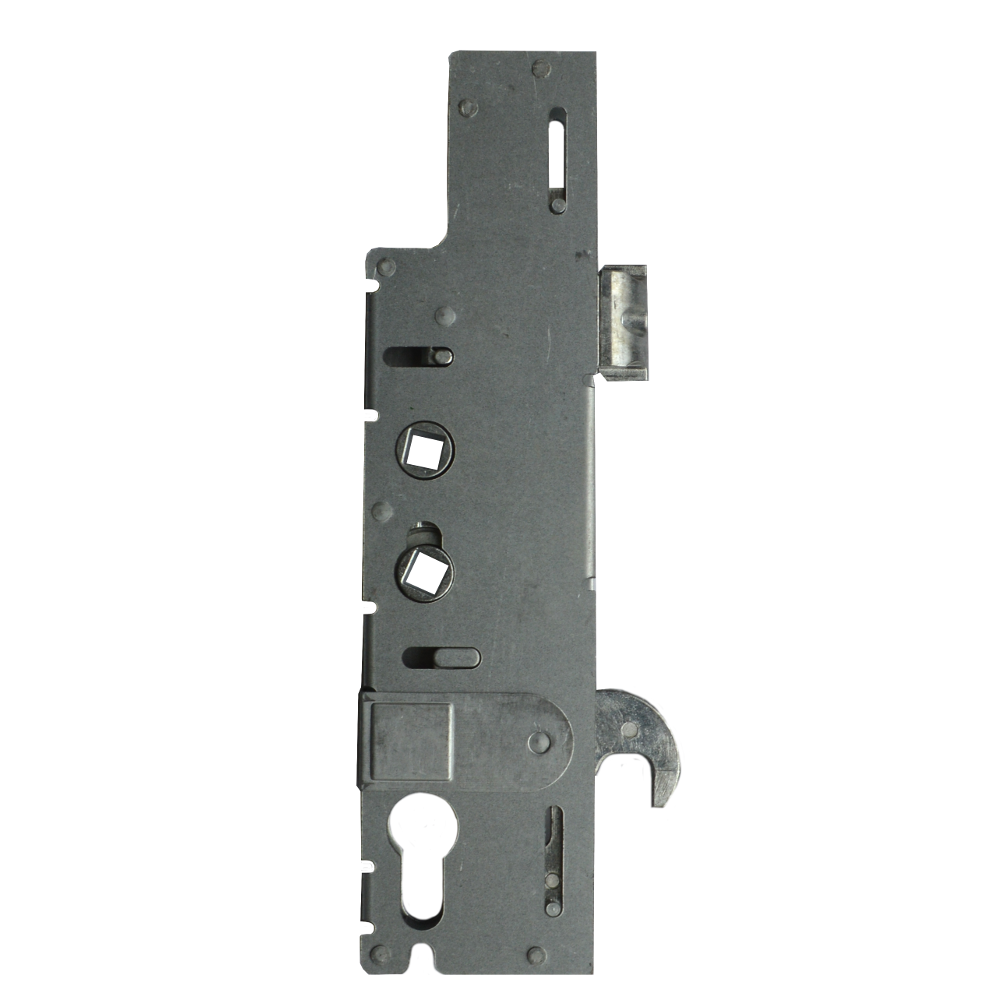

The INGENIOUS Professional Multi-Point Door Lock Gearbox Only has 35mm or 45mm backset, latch & hookbolt centre case, 92mm & 62mm centres, a twin spindle, 47mm or 57mm case width and has 229mm case height. Ingenious multipoint door gearboxes include a handy plastic snib on the faceplate, allowing the latch to be held back for convenience and to avoid accidental lock-outs. The gearbox has unique slider technology for a long lasting, smooth operation. As both followers are unsprung, we recommend pairing with sprung door furniture for best performance. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand and refitting the screw. OperationLocking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
