Description
The LOCKMASTER Lever Operated Latch & Deadbolt Single Spindle Gearbox has 35mm or 45mm backset, 92mm centres, is single spindle, latch & deadbolt centre case, 228mm case height and has 50mm or 60mm case width. The Lockmaster Lever Operated Latch & Deadbolt Gearbox is a cost effective repair solution for common lock failures where the locking strip is still in working condition. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.

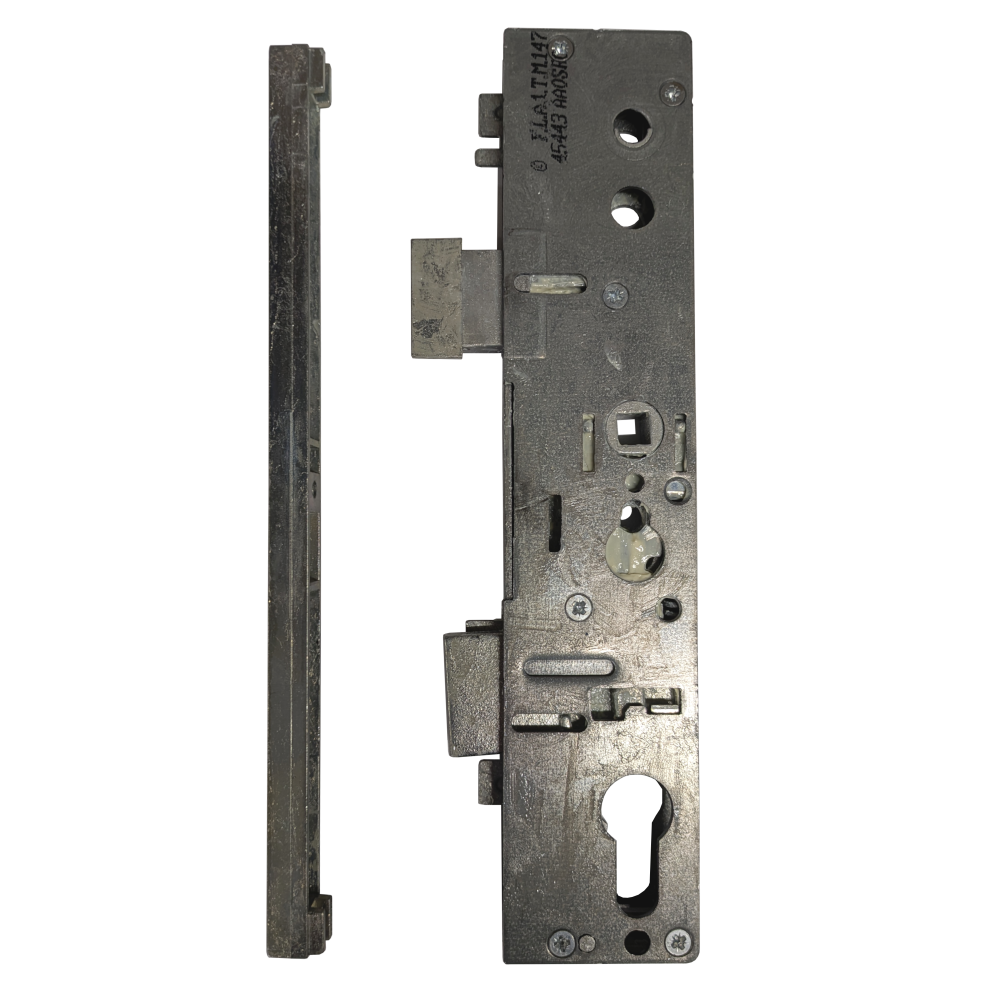

LOCKMASTER Lever Operated Latch & Deadbolt Single Spindle Gearbox
