Description
The UNION Everest 3 Point Centre Case Lock has latch & deadbolt centre case, 48mm centres, 36mm backset, 190mm case height, 65mm case width and has 30mm radius faceplate width. HandingThe latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand. OperationLocking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.

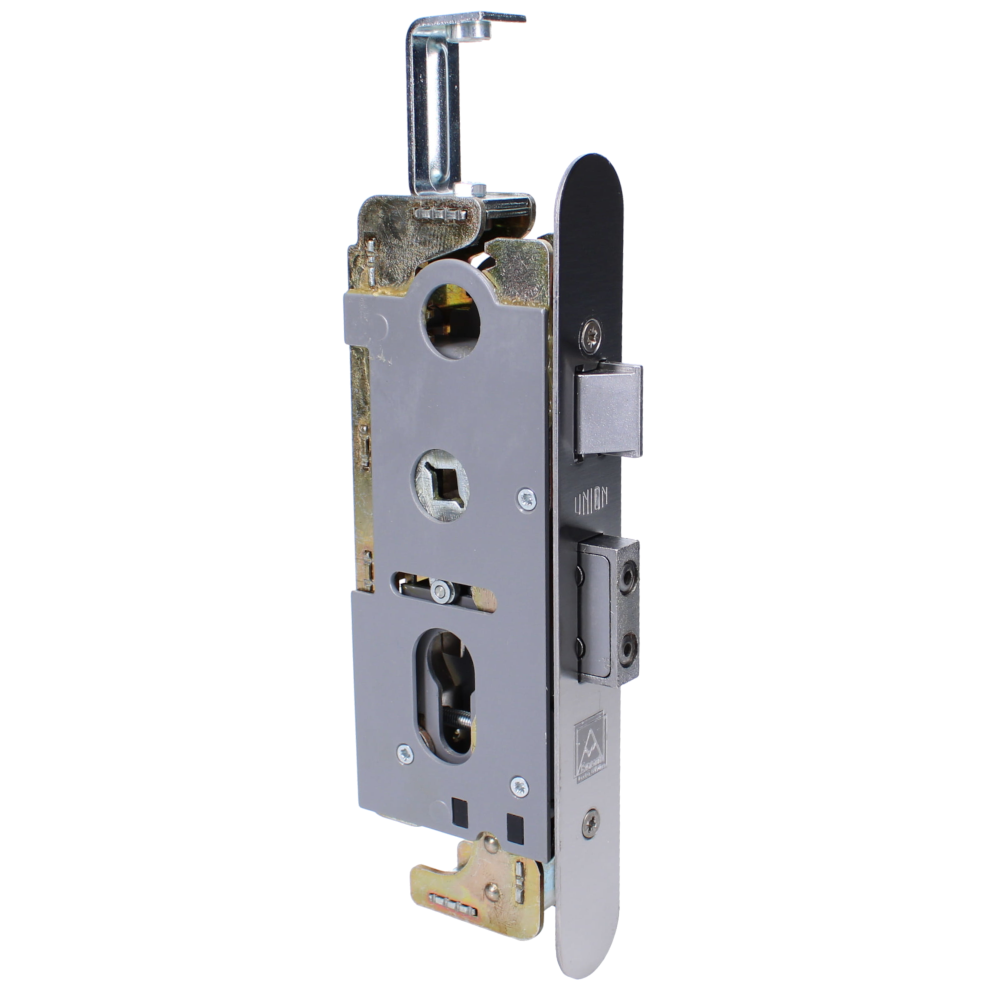

UNION Everest 3 Point Centre Case Lock
