Description

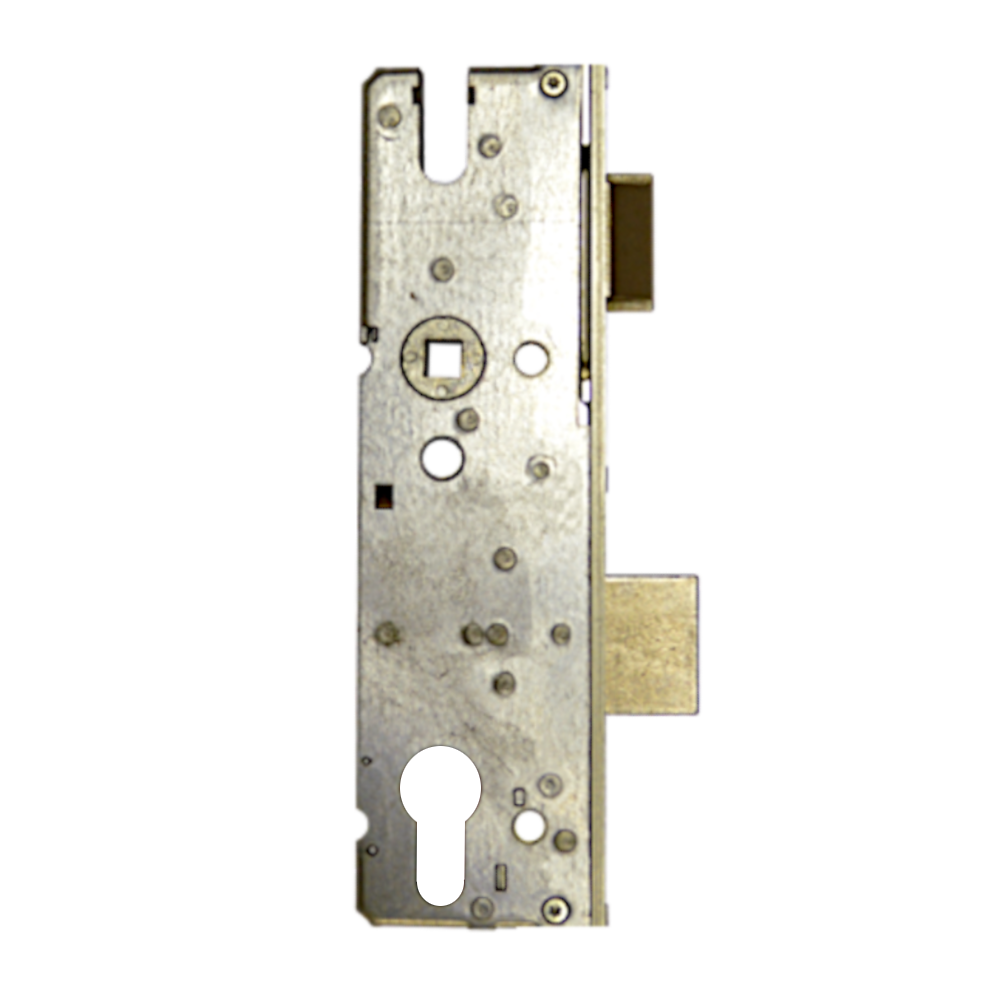

The WINKHAUS AV2 Auto Locking Single Spindle Latch & Deadbolt Gearbox has 35mm, 45mm or 55mm backset, 92mm centres, is single spindle, 186mm case height, 65mm, 63mm or 73mm case width and has 16mm faceplate width. These units are handed, please refer to the handing diagram to ensure that you order the correct product for your application. Winkhaus gearboxes are fixed to the faceplate using rivets rather than screws. This allows the rivets to be removed and replaced when carrying out a gearbox swap, while also making Winkhaus products easy to identify. Ideal for locksmiths and trade professionals, it offers a cost effective solution for repairing or refurbishing existing door systems without needing to replace the entire strip. IdentificationWinkhaus gearboxes are fixed to the faceplate using rivets rather than screws. HandingHanded product so the latch cannot be reversed. OperationLocking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.
