Description

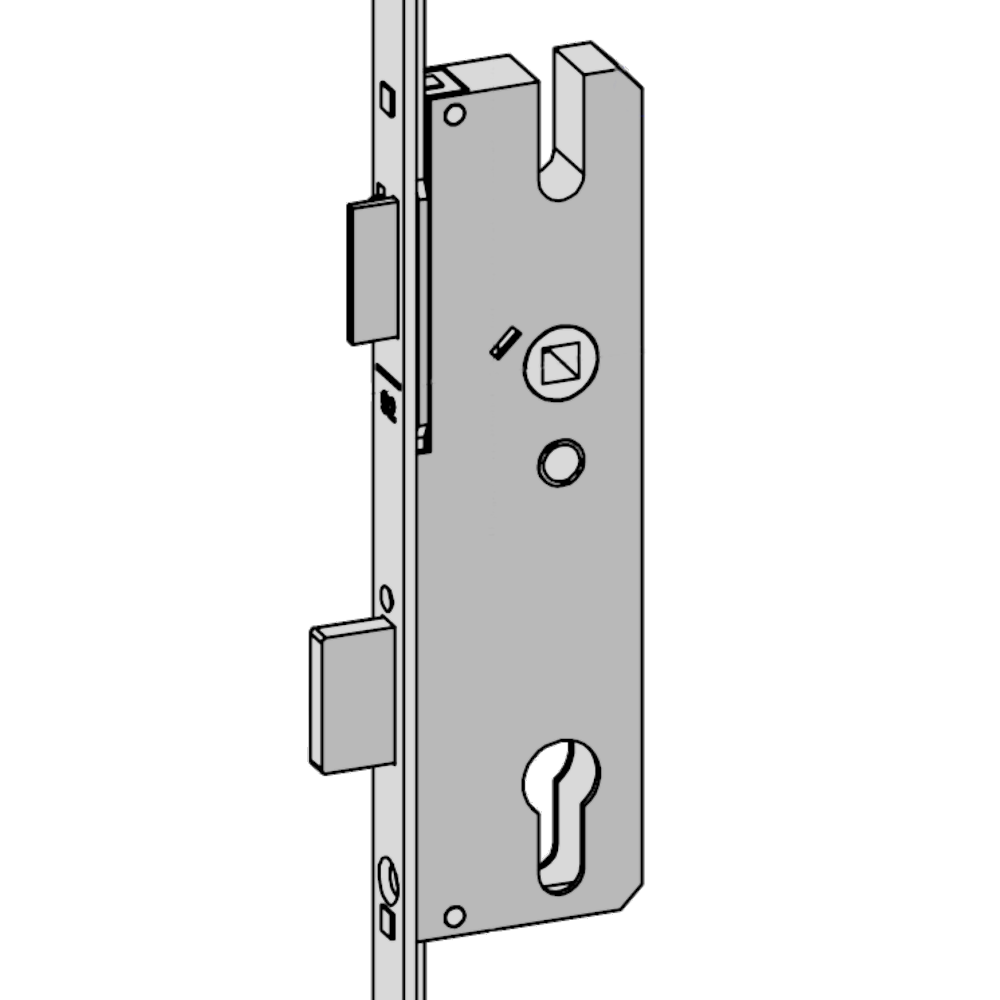

The WINKHAUS Stable Door Gearbox has 45mm or 55mm backset, has 92mm centres and is suitable for timber and composite doors, and is available for upper or lower sections of the stable door. The lower section is hook locking with a gearbox that is key operated and has a roller bolt latch for ease of use, whilst the upper section is hook locking with a latch & deadbolt gearbox that is lever operated. AccreditationThese products comply with corrosion resistance to EN1670: Grade 4 (240 hours NSS). HandingThe latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand. OperationTop Lock = Locking Method – A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock. Bottom Lock = Locking Method – C. Two full turns of the key to lock and then two full turns of the key to unlock. An extra turn withdraws the latch.
